Designed for Homes and Small Commercial Spaces.

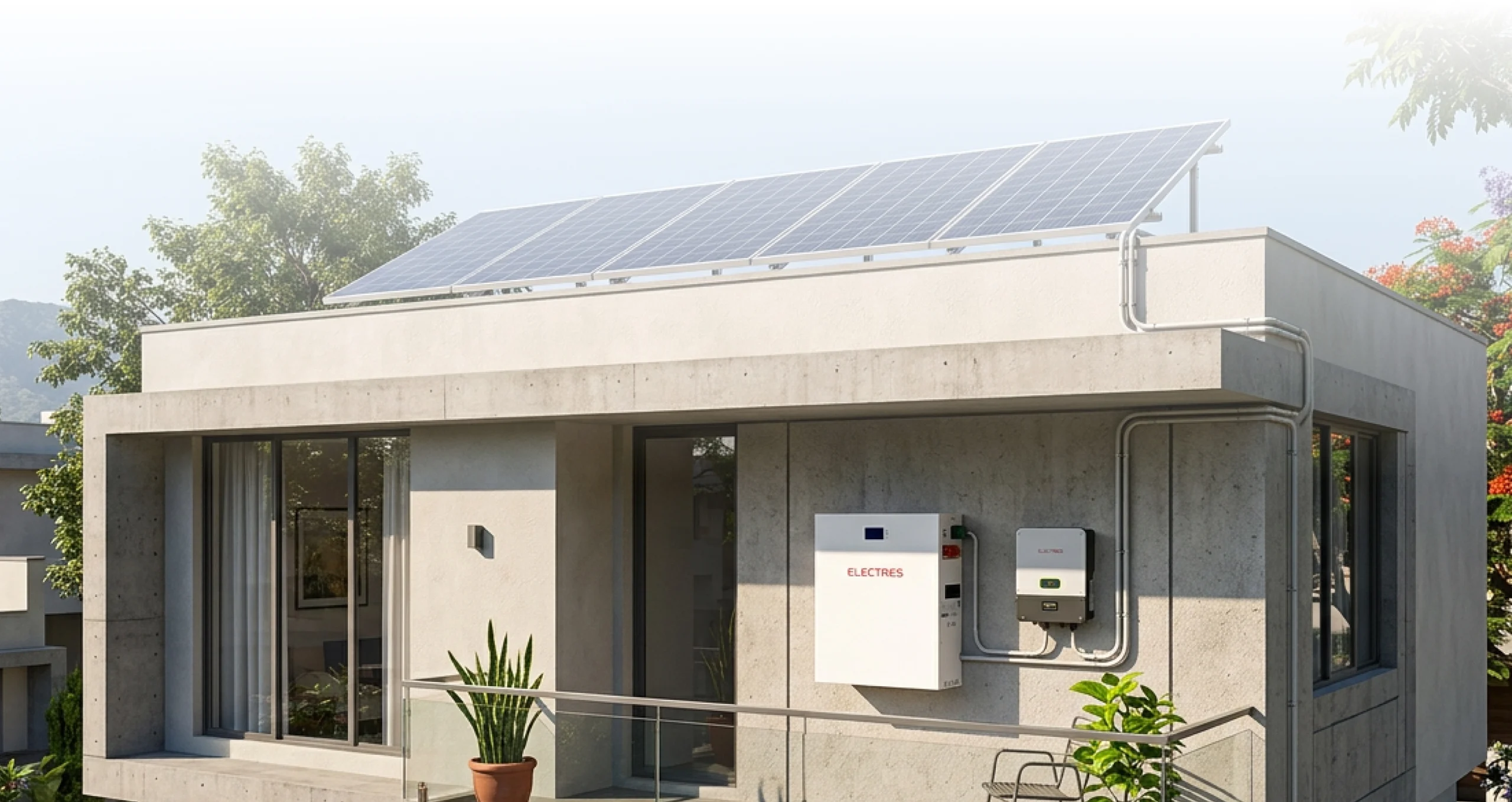

A wall/floor-mounted battery that stores your solar energy, handles every outage, and reduces your electricity bill, built for homes, offices, and small spaces.

Compact Wall/Floor-Mounted Design

Slim and space-efficient, the unit mounts on any wall and fits easily into homes, shops, and small commercial spaces.

Modular and Expandable

Start with one unit and connect up to sixteen units in a parallel configuration, scaling your storage as your energy needs grow.

Smart BMS Protection

Intelligent battery management monitors every cell and protects against overvoltage, undervoltage, overcurrent, and temperature issues.

Wide Inverter Compatibility

Works with leading inverter brands already installed in homes, making it easy to add  storage to any existing solar setup.

Bluetooth Connectivity

Connect wirelessly via Bluetooth to track your system performance, charge status, and energy use in real time, all from your phone.

Quick and Easy Installation

Factory-tested and ready to install on delivery, so your system is up and running with minimal effort and no delays.

The Specs Behind the Product.

Every electrical, thermal, mechanical, and safety specification in one place.

General Characteristics

  • Model Name EH51100LW
  • Nominal Voltage 51.2 V
  • Capacity 100 Ah
  • Configuration 1P16S
  • Cell Type Prismatic
  • Chemistry LFP

Electrical Characteristics

  • Maximum cut-off voltage 56.4 V
  • Minimum cut-off voltage 45 V
  • Charging Voltage 55.2 V
  • Recommended charging current 30 A
  • Maximum charging current 50 A
  • Maximum discharge current 100 A
  • Cycle Life (90% DOD @ 25°C ambient, 0.5C) ≥ 3500

Mechanical

  • Protection Cell under-voltage protection
    Cell Overvoltage Protection
    Overcurrent protection
    Short circuit protection
    Temperature protection
  • Dimension (LxWxH) 515 mm x 195 mm x 543 mm
  • Weight (kg) ~ 54 kgs
  • Installation type Wall / Floor
  • Communication Type RS485 / CAN
  • DC MCB 125 A
  • Operating Altitude ≤ 4000 m (Derating > 2000 m)
  • Working Temperature (°C) Charge: - 5 °C ~ 50 °C;
    Discharge: - 20 °C ~ 50 °C;
    Recommended: 15 °C ~ 35 °C
  • Storage Temperature (°C) 25 °C -  35 °C

What Electres Home Is Built For.

Built for everyday energy needs across homes, offices, shops, and small commercial spaces. Reliable, quiet, and always in the background.

Backup Power During Outage

Rooftop Solar Storage and Self-Consumption

Bill Savings Through Load Shifting

Solar Optimisation Without Grid Dependency

Night-Time Energy Use From Stored Solar

Stable Power Supply During Peak Demand Hours

All the Documents in One Place.

Download the complete product specifications sheet.

Download Datasheet

Explore the Electres Product Range.

One cell chemistry, one cloud EMS, three deployment scales. Size the right platform for every project in your portfolio.

Commercial & Industrial
Electres 125 kW / 261 kWh<br>All-in-One BESS

Electres 125 kW / 261 kWh
All-in-One BESS

C&I storage that manages peak loads, cuts costs, and earns its place on site.

261 kWh Capacity
View Product
Utility Energy Storage
5 MWh Battery Energy <br>Storage System

5 MWh Battery Energy
Storage System

Utility-scale storage built to perform through extreme heat, dust, and grid volatility.

5.016 MWh Energy
View Product

Your Home Storage Project Starts Here.

Tell us about your space and an Electres engineer will recommend the right system, explain the savings, and support you all the way through installation.

Share Your Project Details

Where does excess renewable energy go today?

Surplus Energy Capture

Store excess renewable generation instead of curtailment

Residential to utility scale

Solutions across grid, C&I, and residential applications

Project-Level Support

From evaluation to system integration

Pan-India Deployment

Aligned with evolving energy infrastructure needs

Let’s Understand Your Requirement

Share your details and our team will guide you with the right Electres solution.

    India flag
    Get in Touch
