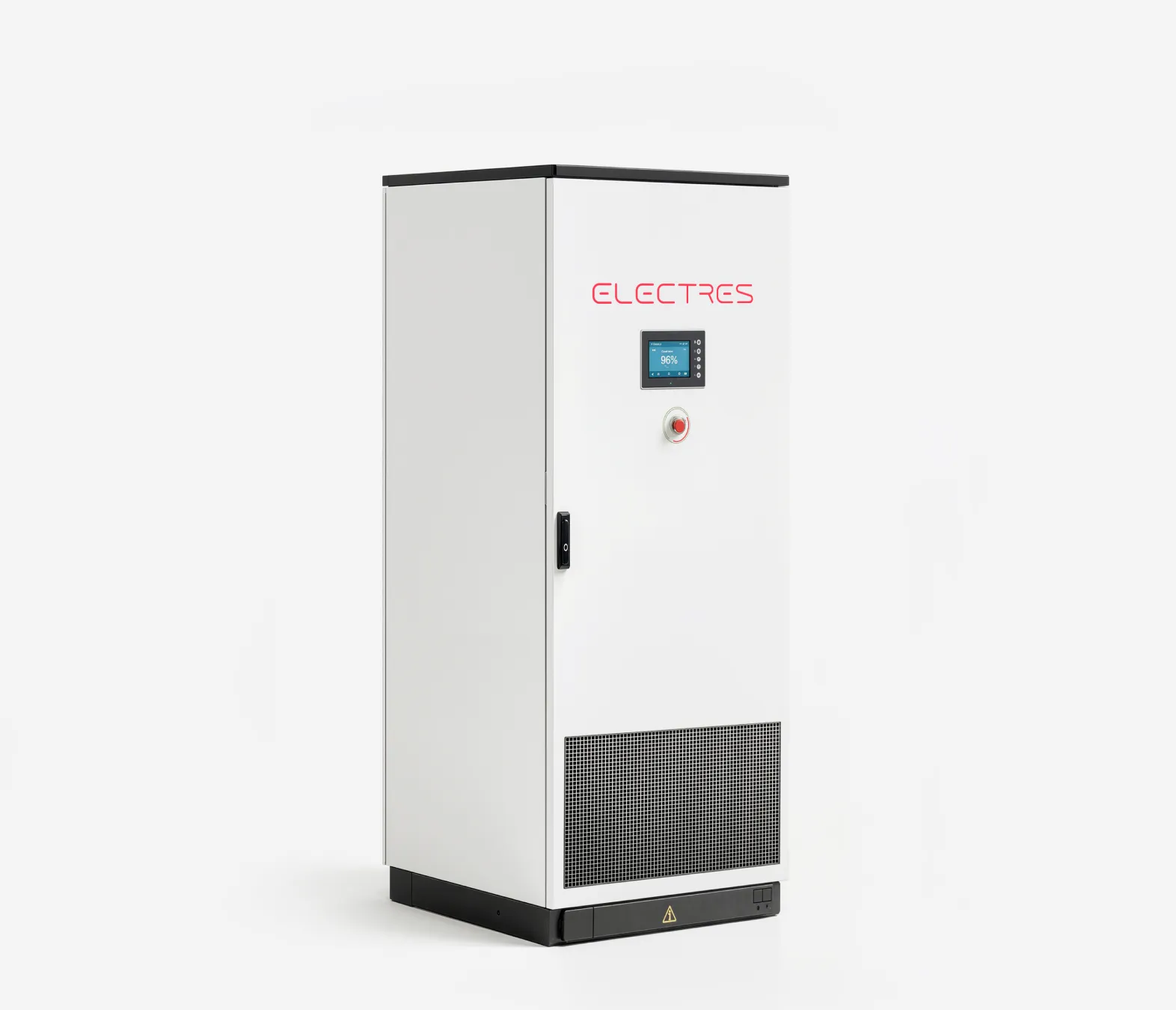

Built for the C&I Sites.

Designed for backup power, peak-demand reduction, and solar integration, all housed in a compact outdoor cabinet and maintained at a consistent operating temperature by liquid cooling, even in the harshest conditions.

Liquid-Cooled Cabinet Design

Integrated liquid cooling keeps every cell within its optimal temperature range across India’s hottest operating days.

AI-Powered Energy Management

The built-in EMS reads your load patterns and automatically decides when to store, when to discharge, and when to draw.

Multi-Layer Safety Protection

Built-in protection against overcharge, over-discharge, overcurrent, and thermal events, keeping the system and the people around it safe at all times.

IP54 Cabinet Enclosure

IP54 Cabinet Enclosure

The cabinet is rated IP54 for outdoor use, with the battery pack independently rated IP65 for a higher level of protection against dust and water ingress.

Modular and Scalable by Design

Start with one cabinet and connect multiple units in parallel as your facility grows, with no redesign or reconfiguration needed.

Peak Efficiency and Performance

Continuously optimised to deliver consistent output, ensuring your system performs at its best under any load condition.

The Complete Technical Picture.

Every electrical, thermal, mechanical, and safety specification, all in one place.

AC Side Parameters

  • AC side parameters 125 kW
  • Total current waveform distortion rate ≤ 3 % (at rated power)
  • DC component of current ≤ 0.5 % (at rated power)
  • Rated grid voltage 400 V
  • Grid voltage deviation - 15 % ~ + 15 %
  • AC overload capacity 1.1 times long-term
  • AC wiring method 3P + N + PE
  • Rated grid frequency 50 Hz / 60 Hz ± 2.5 Hz
  • Power factor 0.99 / - 1 ~ 1
  • AC protection Circuit breaker
    + AC lightning protection

DC Side Parameters

  • Battery capacity 261 kWh
  • System configuration 1P52S
  • Battery pack configuration 1P52S / 52.25 kWh
  • Cell type LFP 314 Ah
  • Battery voltage range 728 V ~ 936 V
  • Pack protection level IP66

System Parameters

  • Maximum system efficiency 88 %
  • Battery cell cooling method Liquid Cooling
  • Cycle life ≥ 8000
  • Remote monitoring Cloud Platform
  • Noise ≤ 75dB @ 1 m
  • Communication interface Ethernet, RS485
  • Communication protocol MODBUS-TCP/MODBUS-RTU
  • Maintenance method Double-sided maintenance
  • Installation location Outdoor
  • Outlet method Down in and out
  • Operating temperature range - 20 °C ~ 50 °C
  • Operating altitude < 3000 m (Derating > 2000 m)
  • Operating humidity range 5 % ~ 95 % RH, No condensation
  • Corrosion resistance level C4 / C5 (optional)
  • Protection level Battery compartment IP55
    + electrical compartment IP54
  • Fire protection system Pack-level aerosol + cabin-level

    aerosol + water firefighting (optional)
  • Product dimensions (mm) 1100  (W) mm x 1320 (D) mm x  2560 (H) mm
  • Equipment weight ~ 2700 kg
  • Certifications GB/T 36276, UN38.3, IEC 62619

    IEC 62477, IEC 61000, UL9540A (Cell)

Where Electres Pro Earns Its Place.

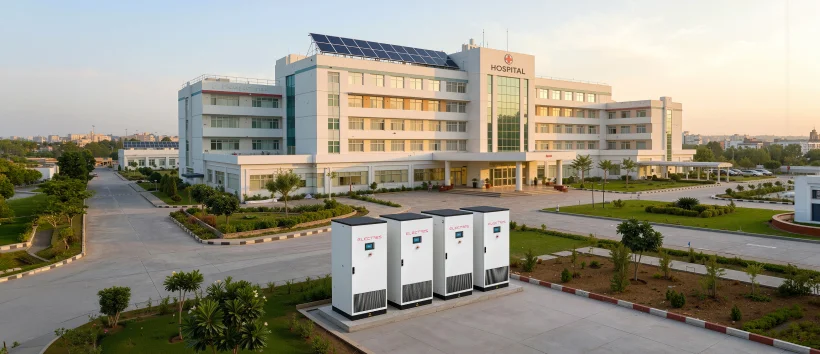

Built for the most demanding commercial and industrial energy storage applications. Deployed and operating across multiple sites.

Backup Power for Critical Operations

Peak Shaving and Demand Charge Reduction

Energy Arbitrage and Tariff Optimization

Voltage Fluctuation and Power Quality Management

Power Factor Improvement

Solar Energy Integration and Self-Consumption

Every Standard Met. Every Test Passed.

Every Electres system is thoroughly tested and built to the highest industry standards.

GB/T 36276
IEC 62619
IEC 62477
IS 16270
IEC 61000
9540A
UN 38.3

Everything You Need to Scope and Quote.

Everything you need to scope and quote, download the full specifications.

Download Datasheet

Explore the Electres Product Range.

One cell chemistry, one cloud EMS, three deployment scales. Size the right platform for every project in your portfolio.

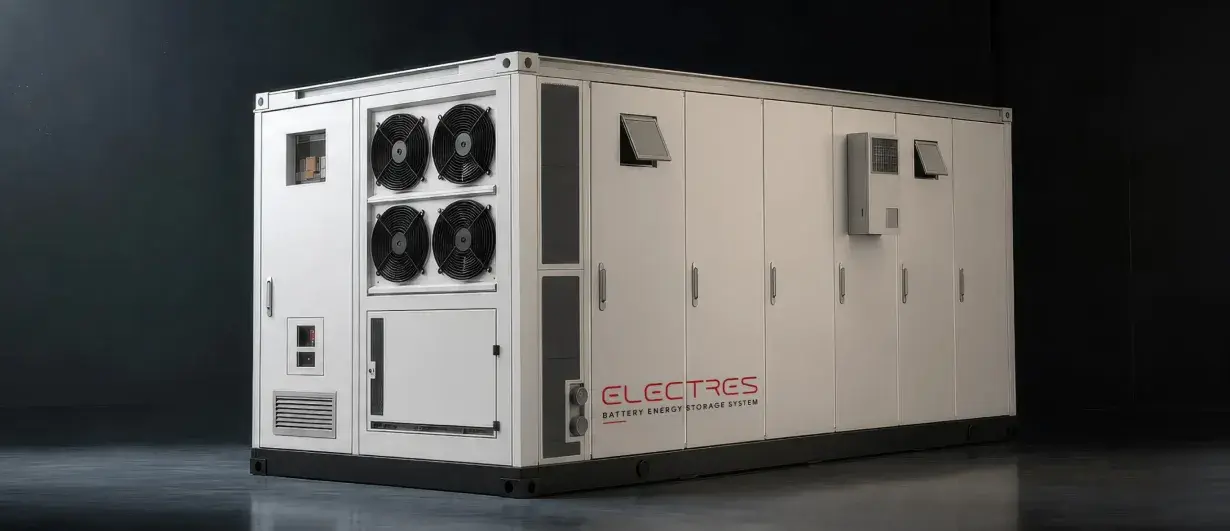

Utility Energy Storage

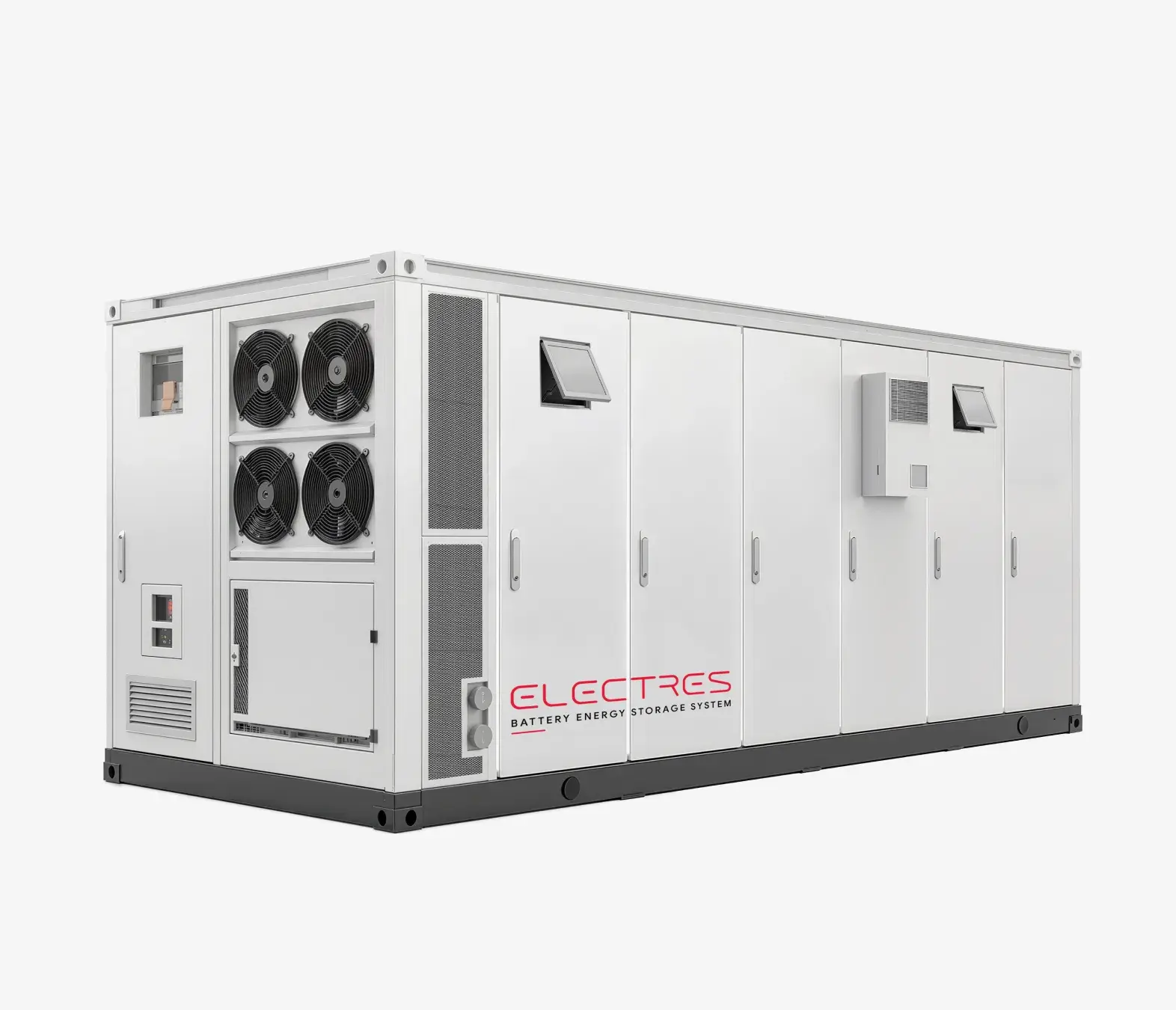

5 MWh Battery Energy <br>Storage System

5 MWh Battery Energy
Storage System

Utility-scale storage built to perform through extreme heat, dust, and grid volatility.

5.016 MWh Energy
View Product

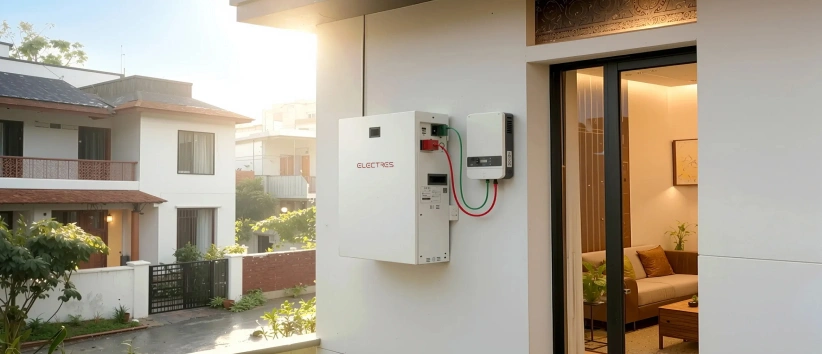

Residential

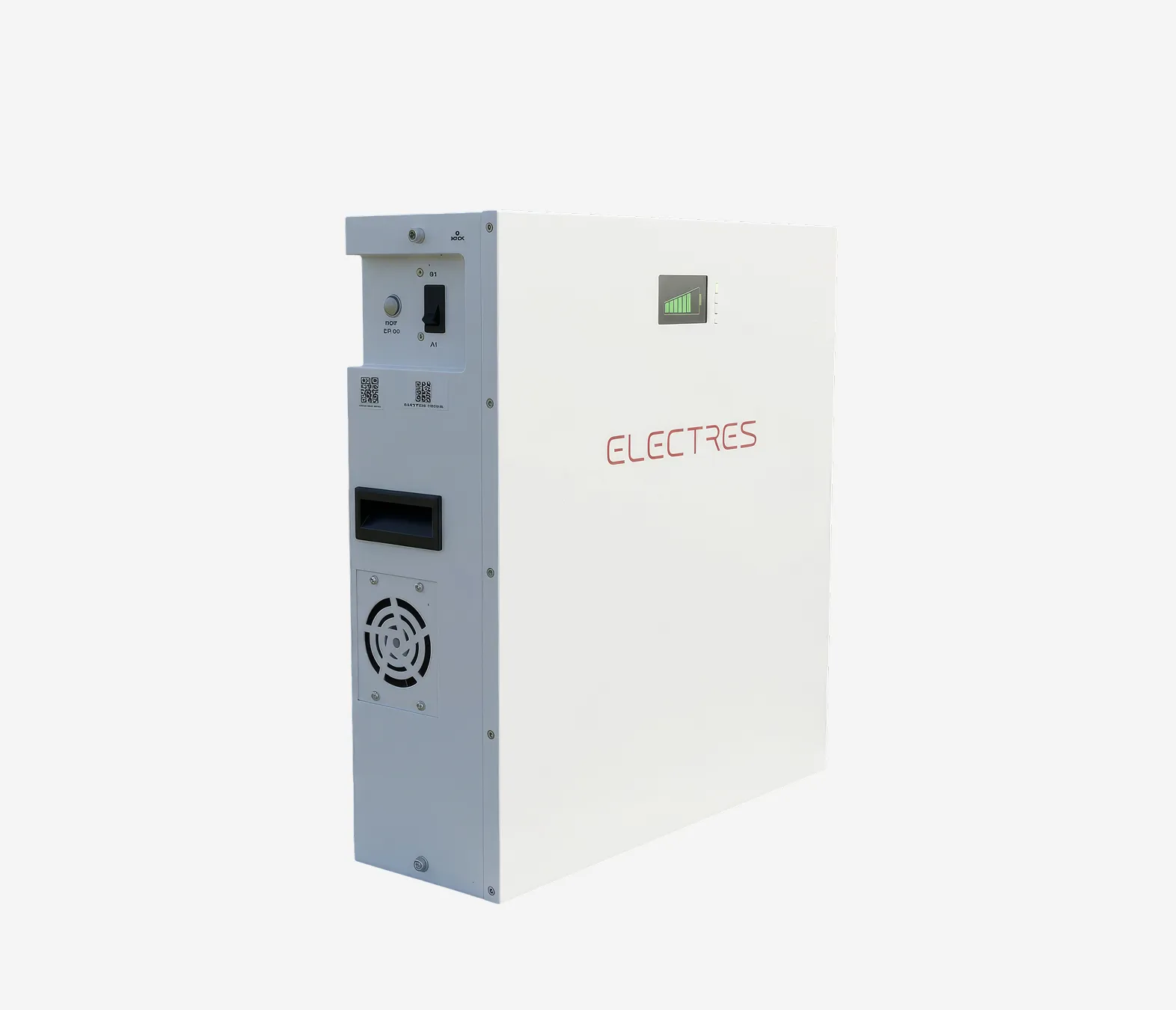

Electres 5 kWh Lithium Energy Storage Battery System
